Featuring SS316L stainless steel construction, ATEX certification, and easy CAT6 installation, it is ideal for offshore, oil & gas, and industrial monitoring applications.

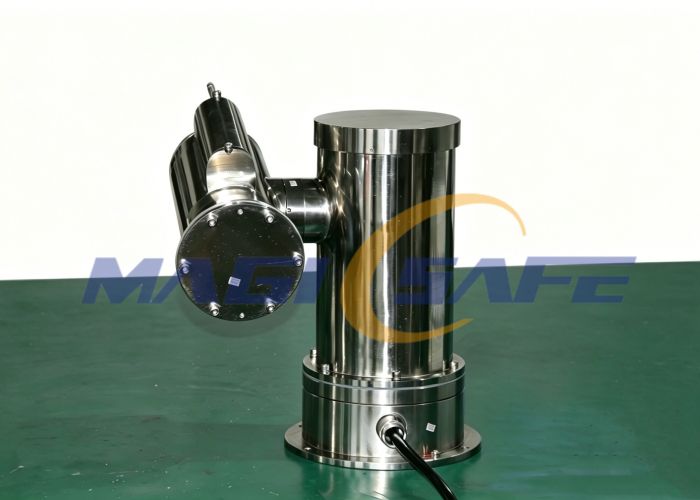

Explosion-Proof PTZ Camera for Hazardous Areas
The explosion-proof PTZ camera is designed for reliable surveillance in Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas, where flammable gases or dust may be present.
With 360° continuous rotation and 180° tilt, this camera delivers full-area monitoring with minimal blind spots. Built with marine-grade SS316L stainless steel, it ensures long-term durability in offshore and harsh industrial environments.
Its simplified CAT6 connection (up to 80m) eliminates the need for fiber converters, reducing installation cost and complexity.
Technical Specifications
| Parameter | Specification |
| Pan Rotation | 360° continuous |
| Tilt Angle | 180° |
| Network | CAT6 cable (max 80m) |
| Material | SS316L Stainless Steel |
| Protection Rating | IP66 |
| Hazardous Area | Zone 1, 2, 21, 22 |
| Certifications | ATEX / IECEx / CNEX |
Installation Options
● Wall mounting
● Pole mounting
● Ceiling mounting
Flexible installation for different industrial environments.
Key Features
360° PTZ Full Coverage
● 360° continuous pan rotation
● 180° tilt movement
● Remote zoom and control
● Wide-area monitoring with fewer cameras
Certified for Hazardous Areas
● Suitable for:
■ Zone 1 / Zone 2 (gas environments)
■ Zone 21 / Zone 22 (dust environments)
● Certified to:
■ ATEX
■ IECEx
■ CNEX
Heavy-Duty SS316L Construction
● Marine-grade stainless steel housing
● Corrosion-resistant for offshore use
● IP66 protection against water and dust
Simplified Installation (Key Advantage)
● Supports CAT6 cable up to 80 meters
● No need for fiber optic converters
● Reduced installation time and cost
High Efficiency Surveillance
● One PTZ camera replaces multiple fixed cameras
● Lower system cost and maintenance
● Improved operational awareness
Applications
This explosion-proof PTZ camera is widely used in:
● Offshore oil & gas platforms
● Refineries and petrochemical plants
● LNG / LPG terminals
● Tank farms and storage facilities
● Marine vessels and ports
● Power plants and industrial zones
Why Choose This Explosion-Proof PTZ Camera
✔ Full 360° hazardous area monitoring
✔ Certified for gas and dust environments
✔ SS316L for extreme offshore conditions
✔ Easy installation with standard CAT6
✔ Reduce number of cameras and system cost
