Product Overview

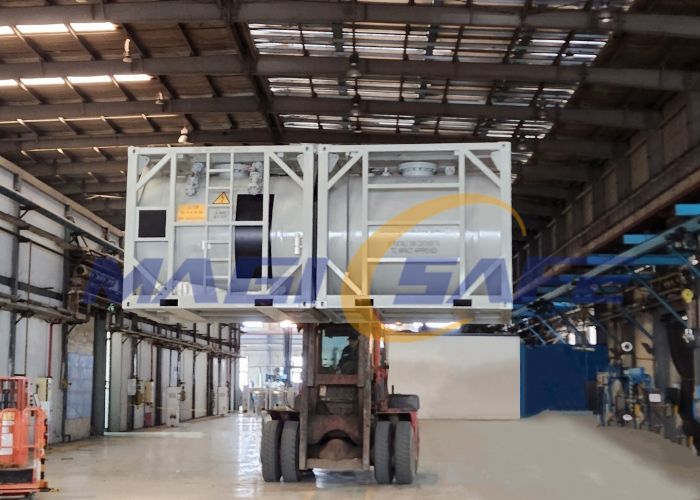

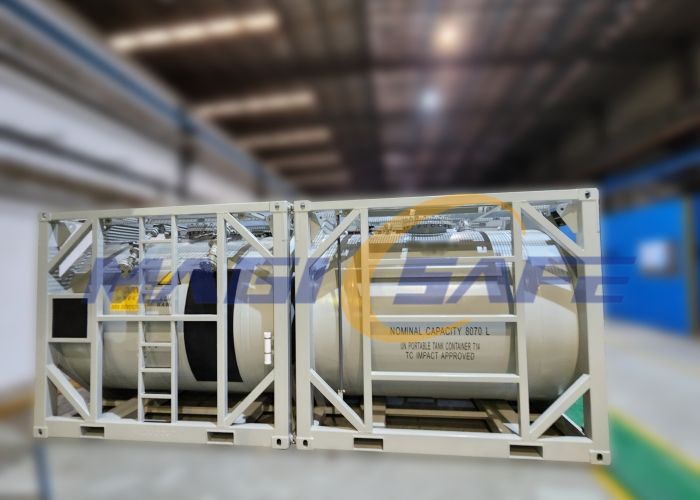

The Acid Tank with Lining is specifically engineered for the safe storage and transportation of corrosive chemicals in demanding offshore and industrial environments. Designed in accordance with international offshore standards, this tank provides a reliable and compliant solution for handling acids and hazardous liquids.
Built within a robust ISO 10ft / 20ft frame and equipped with high-performance internal lining, it ensures long-term durability, maximum safety, and resistance against aggressive chemical media.
This tank is widely used in offshore oil & gas operations, chemical processing, and drilling applications where safe chemical containment is critical.
Key Features
● Available in 10ft & 20ft Sizes
Flexible capacity options to meet different project and transportation requirements.
● Offshore Certified Design
Manufactured in accordance with DNV 2.7-1 standards.
● ISO Containerized Structure
Standard dimensions ensure easy handling, stacking, and global logistics.
● Safe for Hazardous Chemicals
Designed to comply with IMDG regulations for dangerous goods transport.
● Custom Engineering Support
Tailored solutions available based on project requirements.
Technical Specifications
| Parameter | 10FT | 20FT |
|---|---|---|
| External Dimensions(L*W*H) | 2991*2438*2591mm | 6058*2438*2591mm |
| Capacity | 8,070 Liters | 20,000 Liters |
| Payload | 12,050 KGS | 19,650 KGS |
| MGW | 16,000 KGS | 25,000 KGS |
| Frame Type | Offshore Frame | Offshore Frame |
Custom Size Availability
While 10ft and 20ft tanks are the most widely used standards, we also offer:
● Customized tank dimensions and capacities
● Project-specific design for offshore platforms
● Special configurations for transport or space constraints
Our engineering team can design and manufacture tanks tailored to your operational requirements, ensuring full compliance with offshore and hazardous area standards.
Design & Construction
The tank is engineered to provide reliable performance in demanding environments:
● Internal corrosion-resistant lining for chemical protection
● Steel tank structure for strength and durability
● Pressure relief system for safe operation
● Top manhole for access and maintenance
● Designed in accordance with pressure vessel standards such as ASME
Applications
This acid tank is commonly used for:
● Offshore oil & gas operations
● Acid storage for well stimulation
● Chemical handling and transport
● Industrial corrosive liquid storage
Optional Features
● Level gauge system
● Insulation or heating system for low-temperature environments
● Different lining materials (rubber, PE, etc.)
● Custom design and configuration
FAQ – Offshore Chemical Storage Tank
What types of chemicals can be stored in this tank?
This tank is suitable for storing a wide range of corrosive chemicals, including acids used in oilfield operations and industrial processes. The exact compatibility depends on the selected lining material.
Why is internal lining important in an acid tank?
The internal lining provides a protective barrier between the chemical media and the steel tank, preventing corrosion, extending service life, and ensuring operational safety.
How is the lining material selected for different chemicals?
Lining selection depends on factors such as chemical concentration, temperature, and reactivity. Material compatibility must be evaluated to ensure long-term resistance and safe operation.

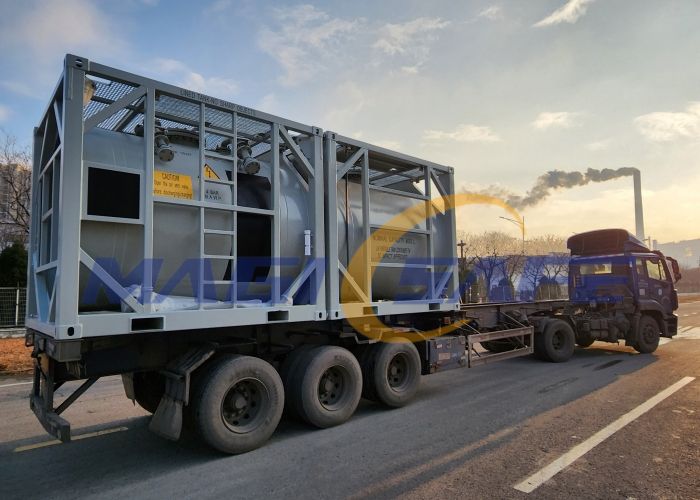

Can the tank be used for transportation as well as storage?
Yes, the tank is designed for both storage and transportation of hazardous chemicals, making it suitable for offshore logistics and operational use.
Is the tank compatible with offshore lifting and handling?
Yes, the tank is designed with a robust structure suitable for offshore handling, including lifting points and a reinforced frame for safe transportation.
How do I choose the right acid tank for my application?
Selecting the right tank depends on several factors, including:
● Type of chemical stored
● Required capacity
● Operating environment
● Safety and compliance requirements
It is recommended to consult with the manufacturer to ensure the correct configuration for your project.
